Liver tumor - MWA

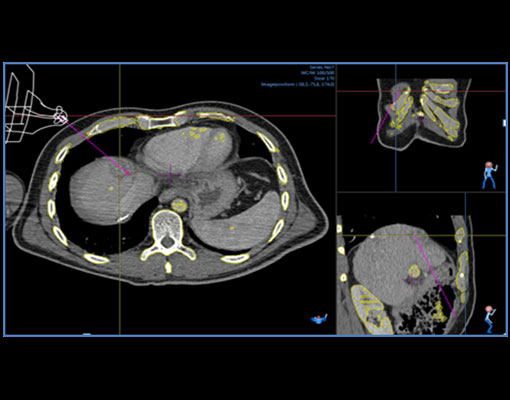

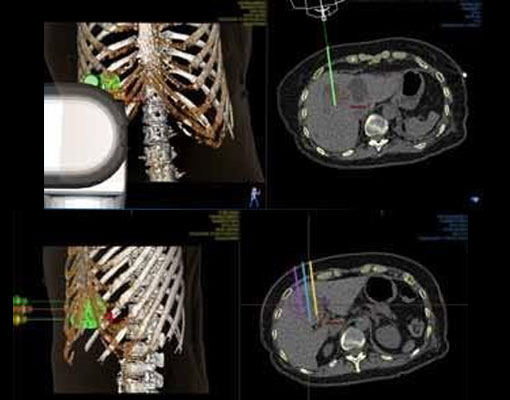

MWA 25 mm mass at 8th segment of the liver.

Challenge : Tumor is located close to heart and it is deep seated. MAXIO^® helps to plan the safe trajectory path and showing the ablation volume covers the tumor. In the Pre and Post ablation registration – 3D shows the tumor (Orange Colour) is completely covered by the ablated region (Blue colour) as per the planned ablation

Procedure : Needle placement was good and the tumor ablated in single sitting as per plan and in 3D pre and Post ablation registration helps to verify the procedure immediately and the tumor was completed ablated.

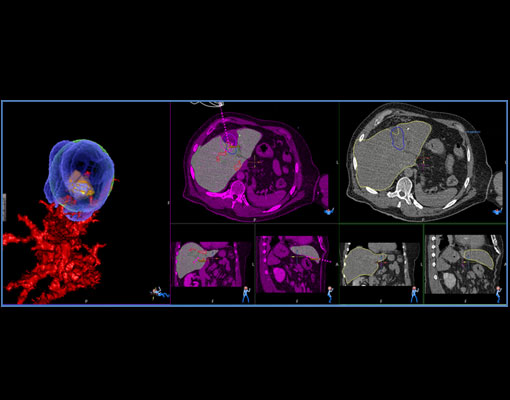

Liver tumor - MWA

MWA 13 mm mass at 5th segment of the liver.

Challenge : Tumor is located close to major portal vein and it is deep seated

Procedure : MAXIO^® helps to place the needle precisely and in the Pre and Post ablation registration – 3D shows the tumor (Orange Colour) is completely covered by the ablated region (Blue colour).

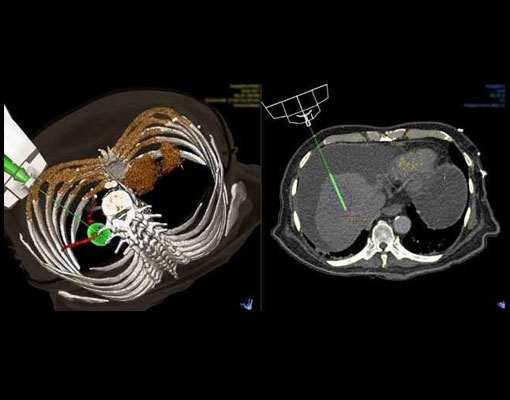

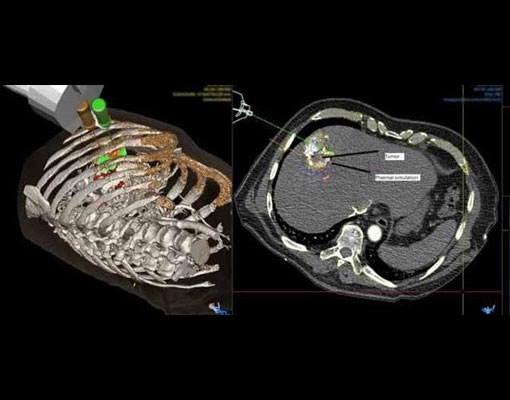

Radio Frequency Ablation of recurrent HCC after TACE

A patient was planned for radiofrequency ablation of 3.8 x 3.7 cm lesion at segment 8 of liver

Challenge : Post TACE lesion was not visible on ultrasound. The residual lesion was situated below diaphragm

Procedure : Patient was planned under GA, coolitip: 17G 150/30 Two probes were used.

Orbital angle : 64/63°

CC angle : 18/13°

Depth : 90.9 / 91 mm

Procedure time : 28 min

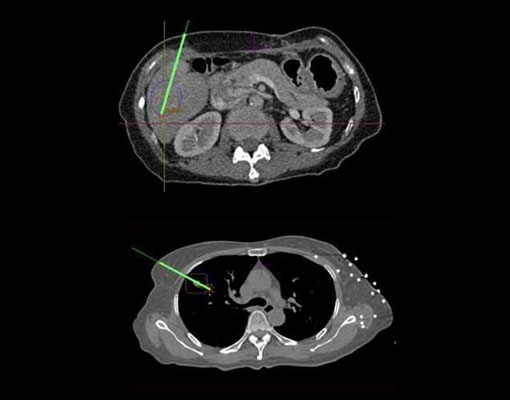

Radio Frequency Ablation of a HCC and a Lung Lesion

Patient planned for RFA of 25 mm mass at 6th segment of the liver and 9 mm mass in right lung during the same procedure

Challenge : Planning safe trajectories with minimal patient discomfort and less procedure related complications is a challenge

Procedure : Ablation procedure planned in two sittings. Lesions targeted precisely with the assistance of MAXIO in sequential mode. No post procedure complications.

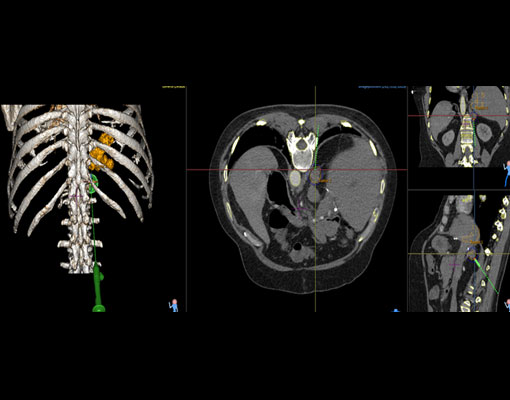

Radio Frequency Ablation of Adrenal Tumor

Patient diagnosed with HCC underwent liver transplant now with solitary adrenal metastatic lesion

Challenge : In free hand, it is difficult to place the probe with steep angulations to reach the target without traumatising the diaphragm and renal vessels.

Procedure : MAXIO^® helps in precise planning and targeting of the adrenal lesion with such complex oblique approach, so as to avoid passing through pleural recess.

Size : 15 mm

Orbital : -5.49°

Cranio caudal : 48.55°

Target depth : 48.55 mm

Radio Frequency Ablation of Liver lesion with multiple probes

A patient planned for Radio-frequency ablation with multi-probe placement

Challenge : Multiple probe placement required to cover the lesion completely. Overlapping the ablation zones is a challenge to avoid the residual tumors.

Procedure : MAXIO^® helps in multi-probe placement and precise targeting of the lesion. Ablation planned in 5 sittings through simultaneous and sequential mode.

Orbital angle : 7.85°

Depth : 93.83 mm

Needle used : 17G

Cooltip : 150-40

Planning time : 15 min

Procedure time : 80 min

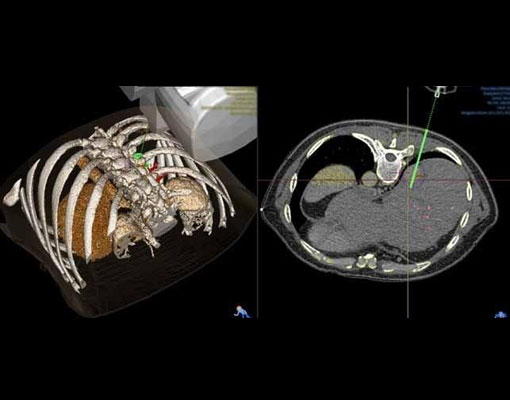

Radio Frequency Ablation of 2 cm of HCC

Patient planned for radiofrequency ablation at 7th segment of liver

Challenge : Lesion is situated posteriorly so planning and treatment is done in prone position.

Procedure : 2 cm lesion was targeted under GA in prone position. The thermal simulation area covered the lesion.

Orbital angle : 19.46°

Depth : 76.28 mm

Needle used : 17G

Cooltip : 150-30

Number of needles : one

Planning time : 10 min

Procedure time : 30 min

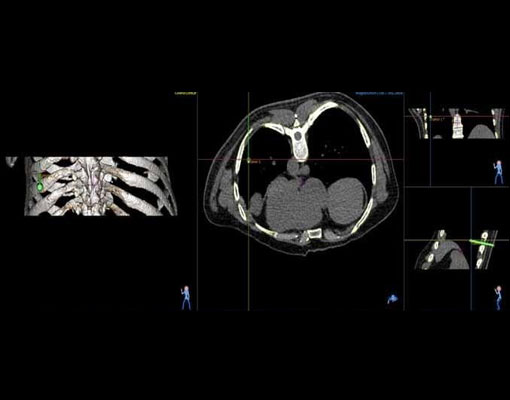

Radio Frequency Ablation of Multiple Lung Lesions

A patient is planned for Radio-frequency ablation of 3 sub-cm lung lesions of primary HCC

Challenge : Precise targeting of the 6mm peripheral lung nodule is difficult.

Procedure : MAXIO^® enables better planning for small lung lesions, minimising number of passes / adjustments required for optimal probe positioning. Procedure completed without any complication

Cranio caudal : 9.37°

Target angle : 65.56 mm

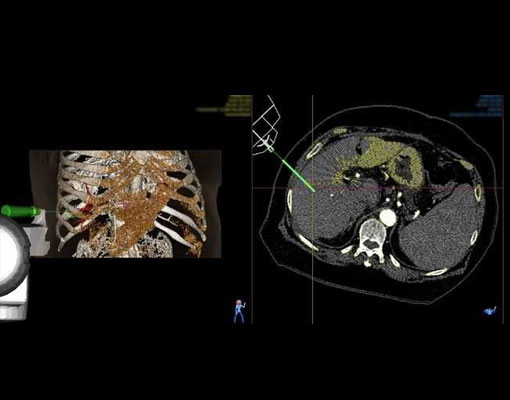

Radio Frequency Ablation of 12 mm Mass in Liver

RFA of 12 mm mass at 5th segment of the liver followed by alcohol ablation

Challenge : Ablation area cannot be predicted easily due to its position in the liver segment.

Procedure : MAXIO^® helps to visualize the ablation zone, so it can be adjusted to treat the tumor precisely. The site of lesion is well within the ablation zone in post RFA CT.

Orbital angle : 45.6°

Depth : 64.5 mm

Needle used : 17G

Cooltip : 100-30

Number of needles : one

Planning time : 5 min

Procedure time : 22 min

Radio Frequency Ablation 1.8 cm HCC

A patient is planned for radiofrequency ablation of 5th segment of 1.8 cm lesion

Challenge : A deep seated lesion requiring the short and safe trajectory.

Procedure : 1.8 cm lesion A deep seated lesion requiring the is targeted with cooltip probe.

Orbital angle : 23.17

CC angle : 0.97°

Depth : 118 mm

Needle used : 17G

Cooltip : 150-30

Number of needles : 1

Planning time : 9 min

Procedure time : 30 min

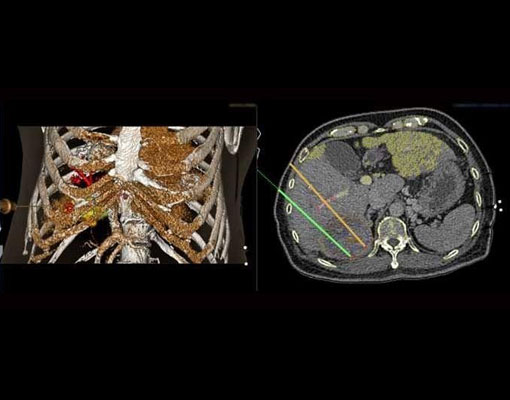

Radio Frequency Ablation of 3.4 cm HCC

A patient is planned for radio frequency ablation of 3.4 cm lesion in 5 th segment of liver

Challenge : Completely covering the tumour with safety margin by thermal ablation zone in sequential probe placements.

Procedure : The lesion is ablated in two sitting of ablation. Two needles placed in simultaneous and first sitting of ablation done and third needle placed towards caudal border by manipulation and second sitting of ablation done.

Orbital angle : 47.08

CC angle : 0°

Depth : 140 mm

Needle used : 17G

Cooltip : 200-30

Number of needles : 2

Planning time : 9 min

Procedure time : 45 min

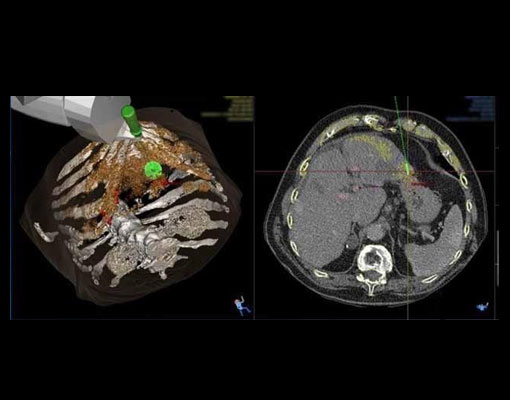

Radio Frequency Ablation of 1.5 cm HCC

A patient planned for a radiofrequency ablation of 1.5 cm lesion in 3rd segment of liver

Challenge : Avoiding the No Go region like stomach in planning and targeting is a challenge.

Procedure : RFA done under GA.

Cooltip : 150/30

Orbital angle : 9.56°

CC angle : 6.88°

Depth : 100.23 mm

Planning time : 5 min

Procedure time : 15 min

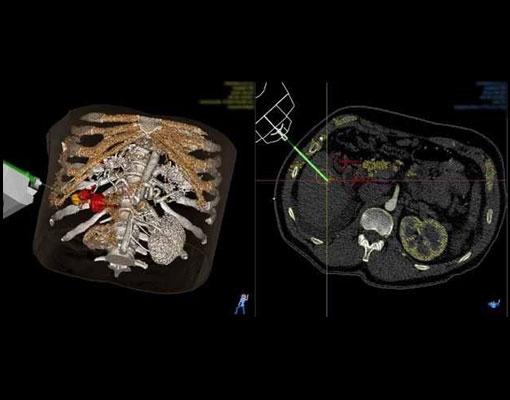

Radio Frequency Ablation of Segment 5 HCC

Patient planned for RFA of (HCC) at Segment 5, with liver cirrhosis and fluid around liver

Challenge : It is a tough case because the lesion, to be targeted, is bouncing due to cirrhosis and fluid around liver.

Procedure : 2 cms HCC targeted for RFA with MAXIO at segment 5 of the liver and RFA performed. Trauma to the bowel was avoided by adjusting thermal simulation option. Post ablation scan shows, a wedge-shaped area without enhancement covering lesion.

Lesion size : 1.6 x 2 x1.3 cms

Orbital angle : 44°

Depth : 69 mm

Needle used : 17 G/100 mm,

Cooltip : 100-30

Number of needles : 1

Planning time : 10 min

Procedure time : 25 min

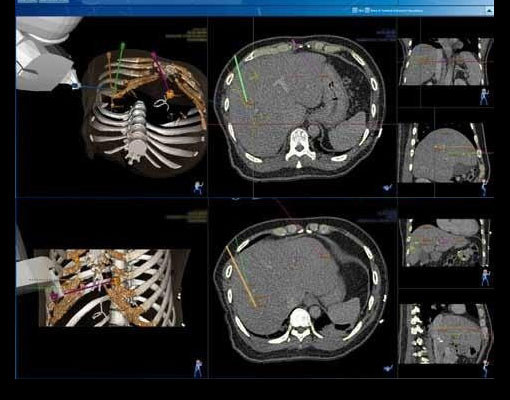

Multiple Liver tumours planned for MWA

• Multiple probe planning in sequential mode
• Overlapping ablation zone can be estimated
• Collision detection and sequencing algorithm
